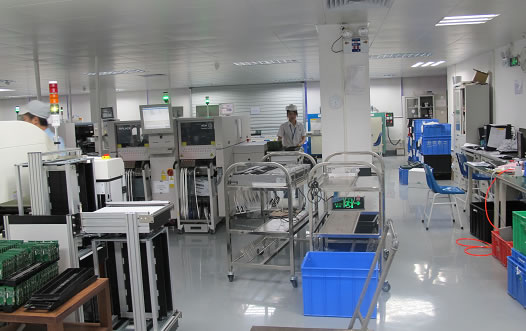

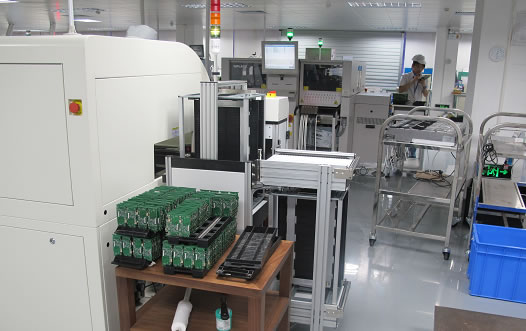

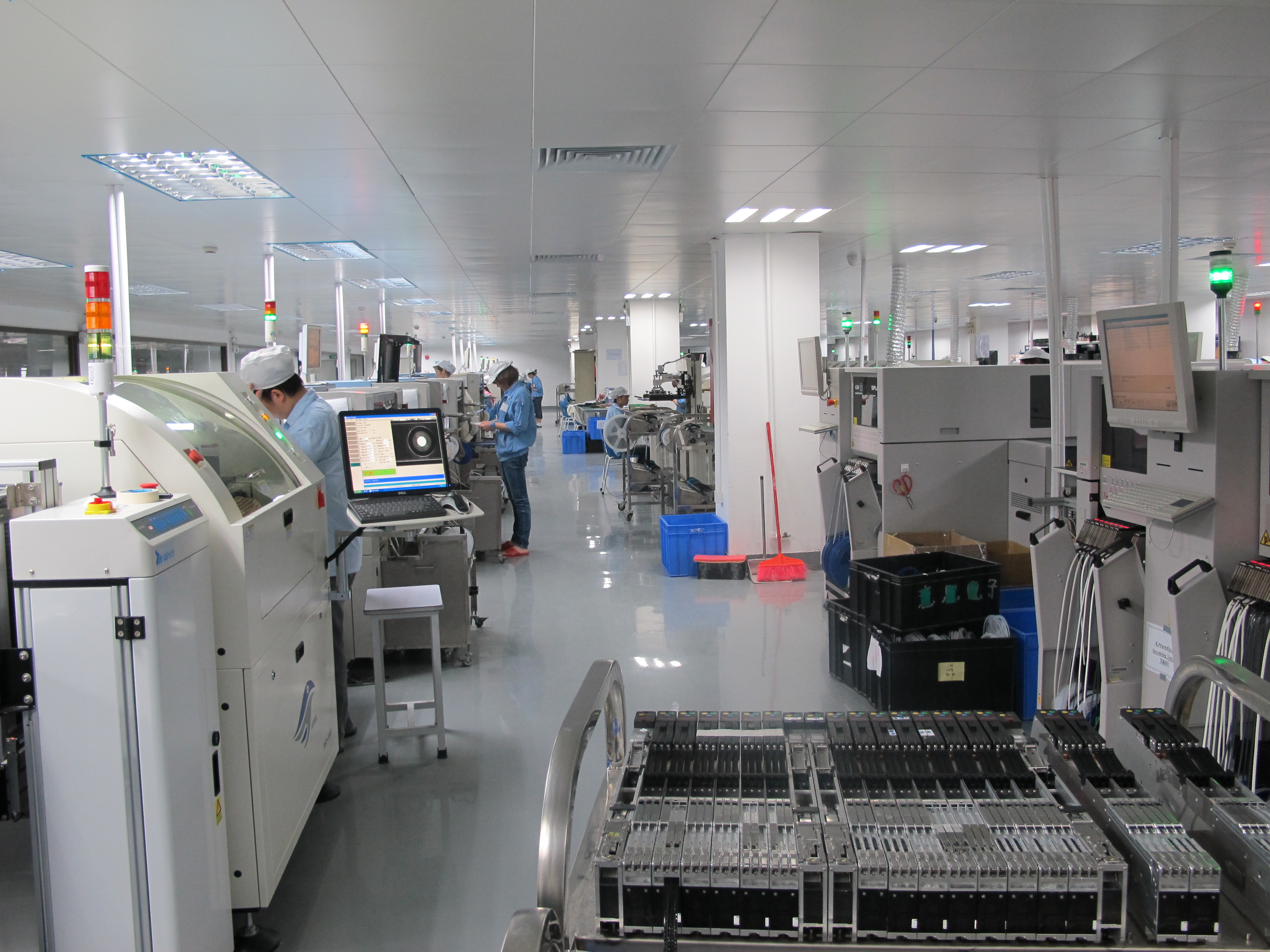

SMT Factory line, PCB Assembly Shenzhen, Electronic Contract Manufacturing, 1 to 5 days production turnaround times, Productions run 10k+ units/year, Resistors and Capacitors to 01005, BGAs to .254mm, Fine Pitch to 0.4mm, ISO 9001:2015 Certified, IPC 610-A capable

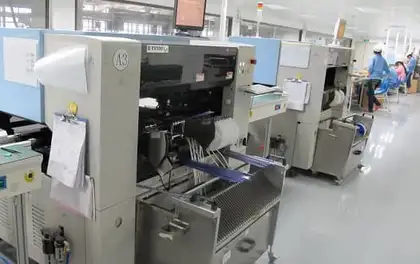

PCBSINO PCB assembly electronic product manufacturing

SMT Assembly Process

SMT package: BGA,QFN,TQFP,0201,0402,0603, BGA pitch smaller to 0.4mm

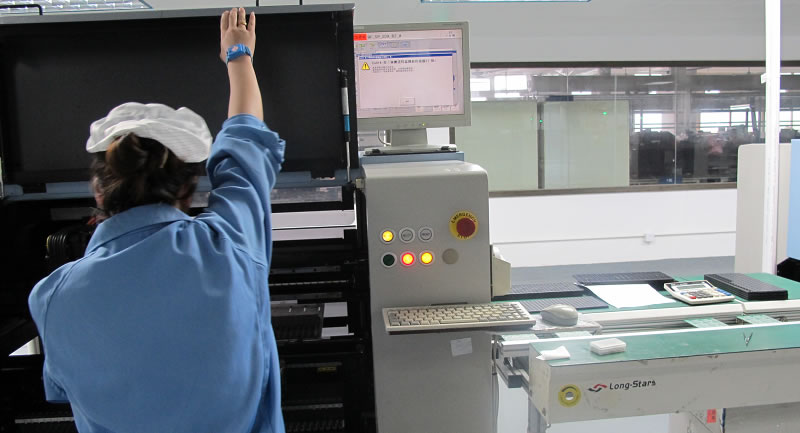

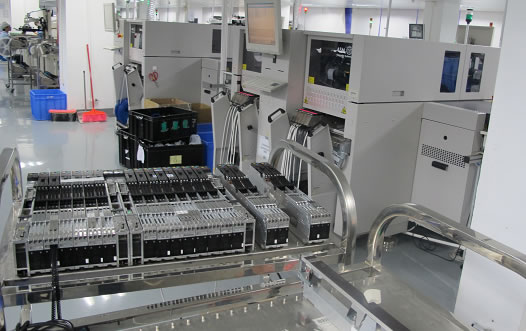

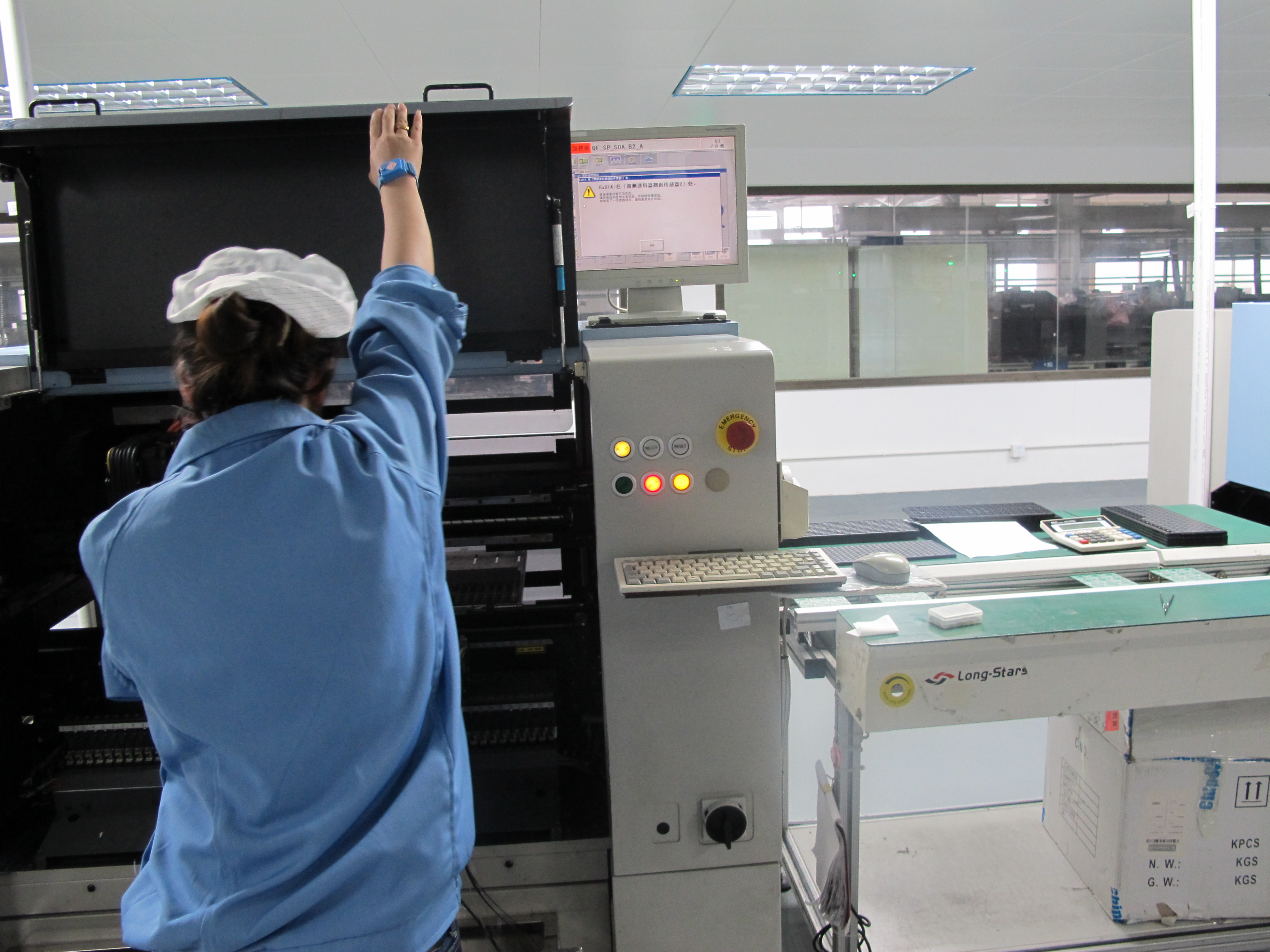

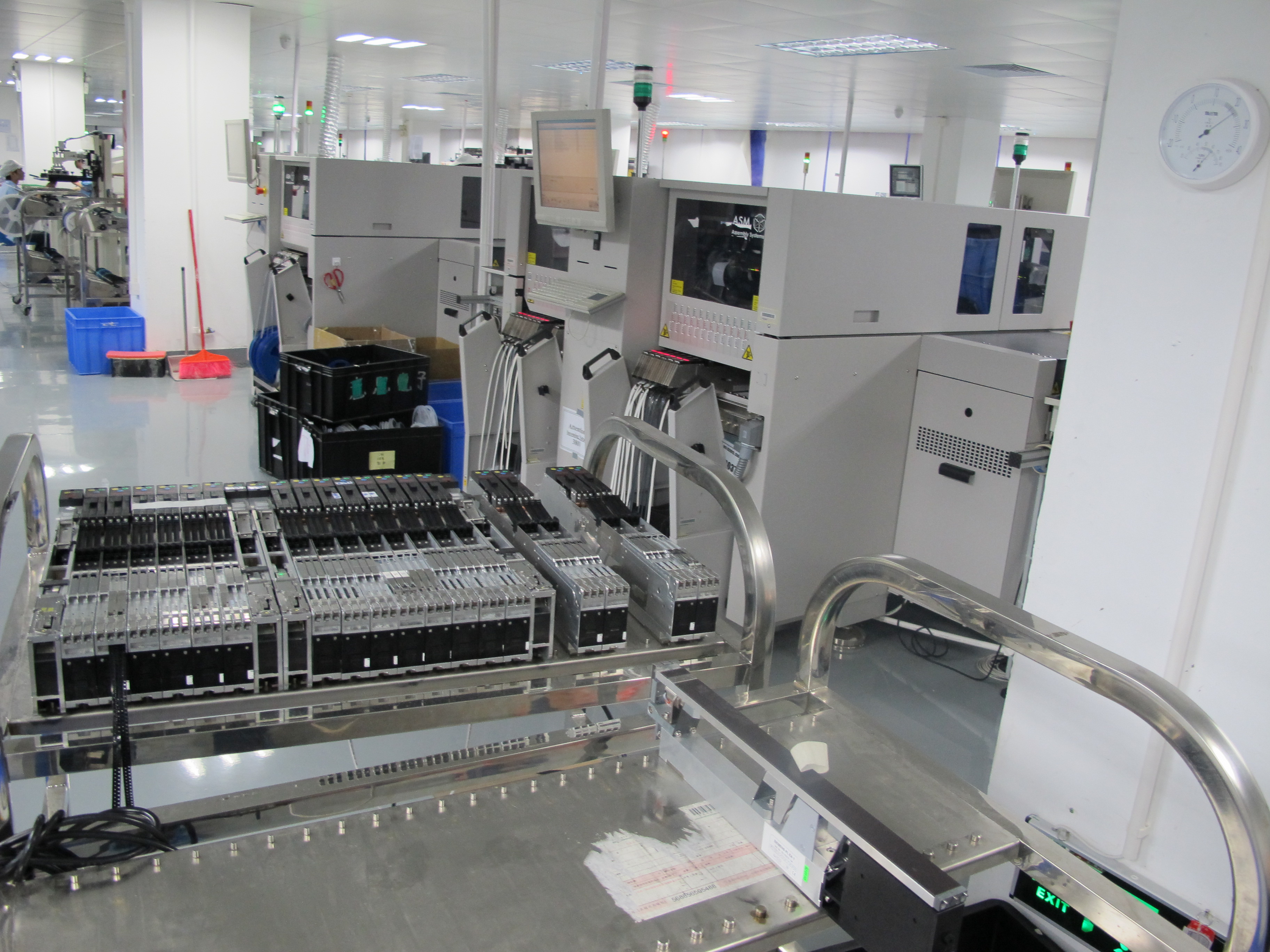

PCBSINO SMT Automated Machine Placement.

SMT Assembly Process

quick turn times, 1 day, 2 day, 3 day, 5 day and 10 day turns available

All common components.

SMT Assembly Process

Chips down to 0201 (high speed) and 01005

BGA and Micro BGA down to 0.012 in. (0.3mm) pitch, ball count greater than 1000

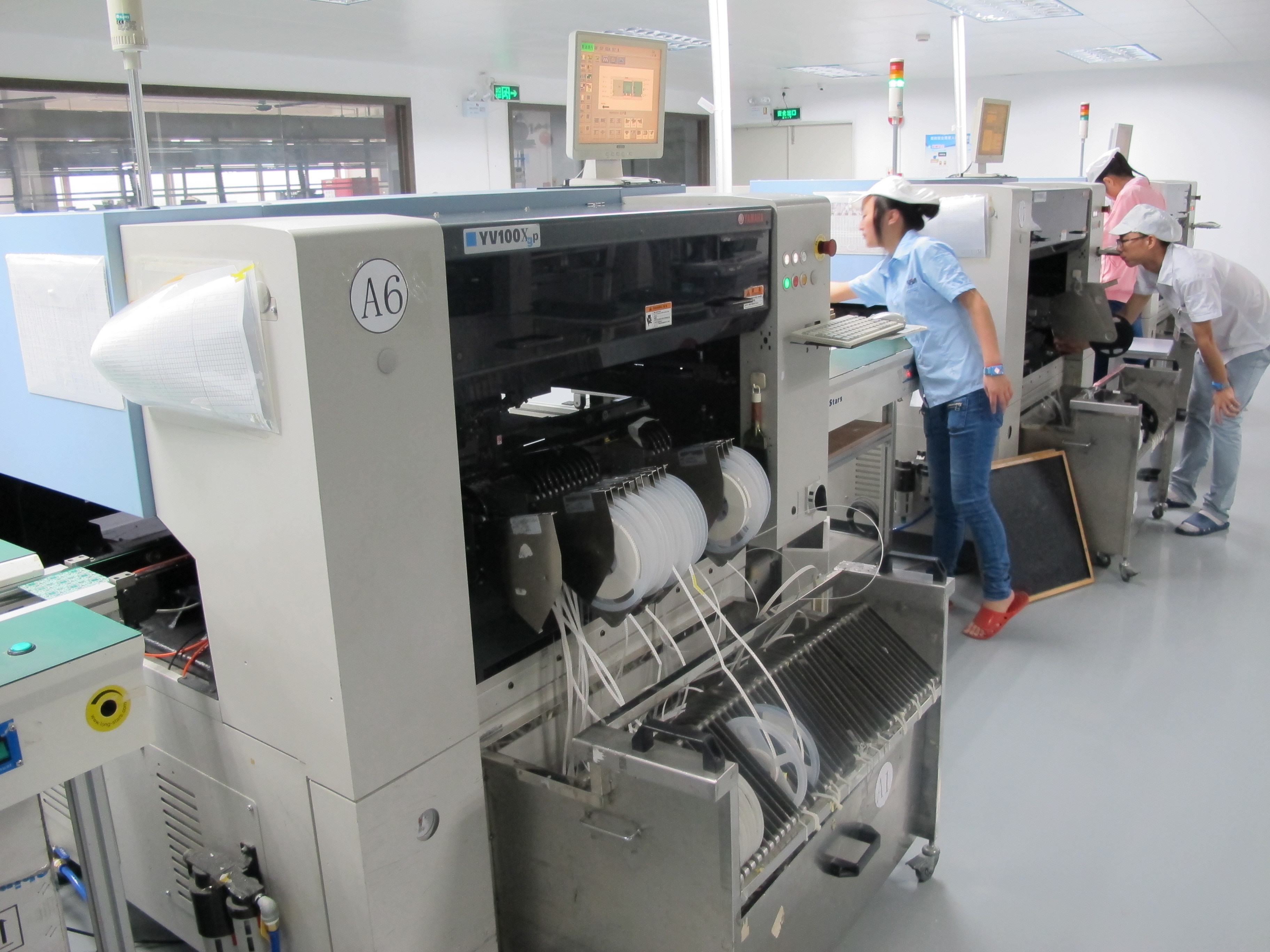

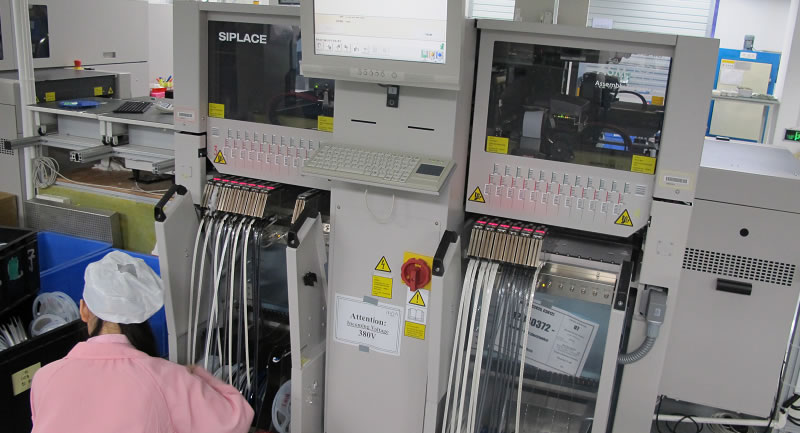

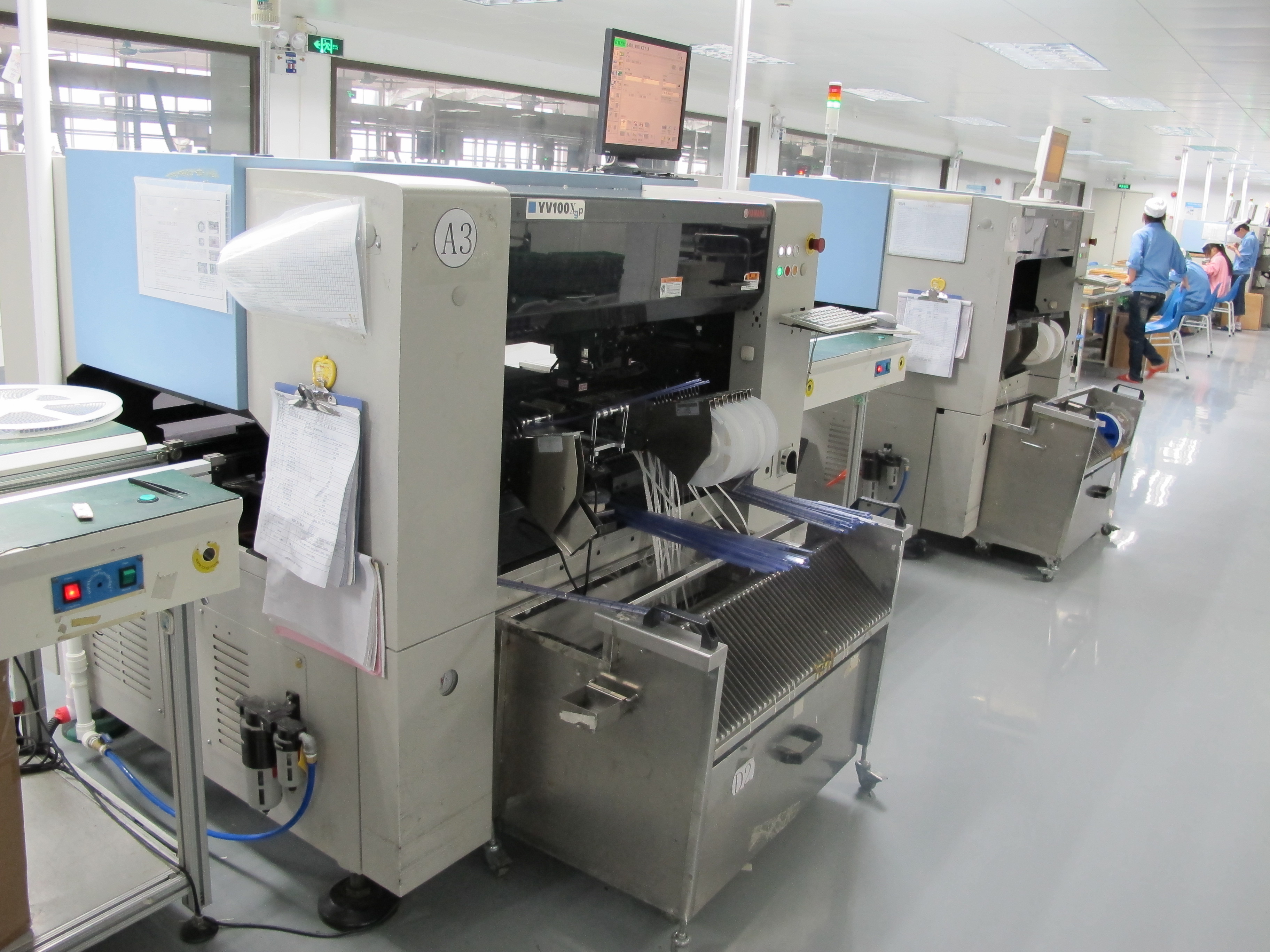

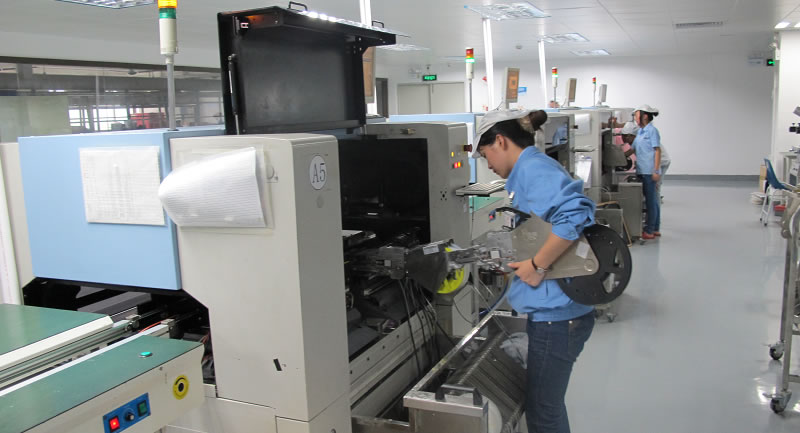

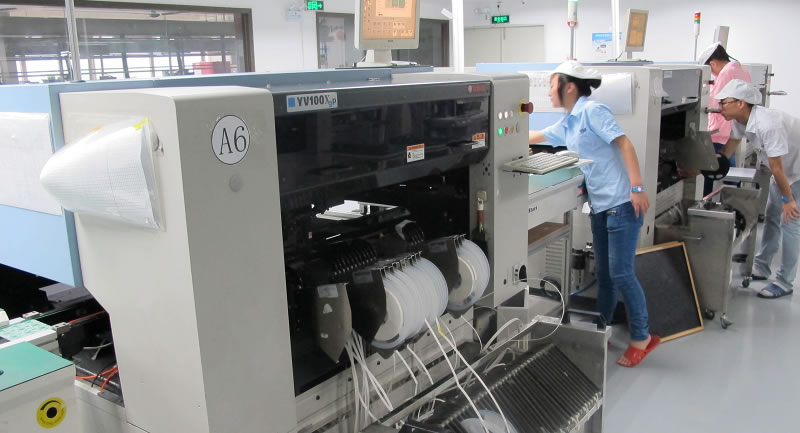

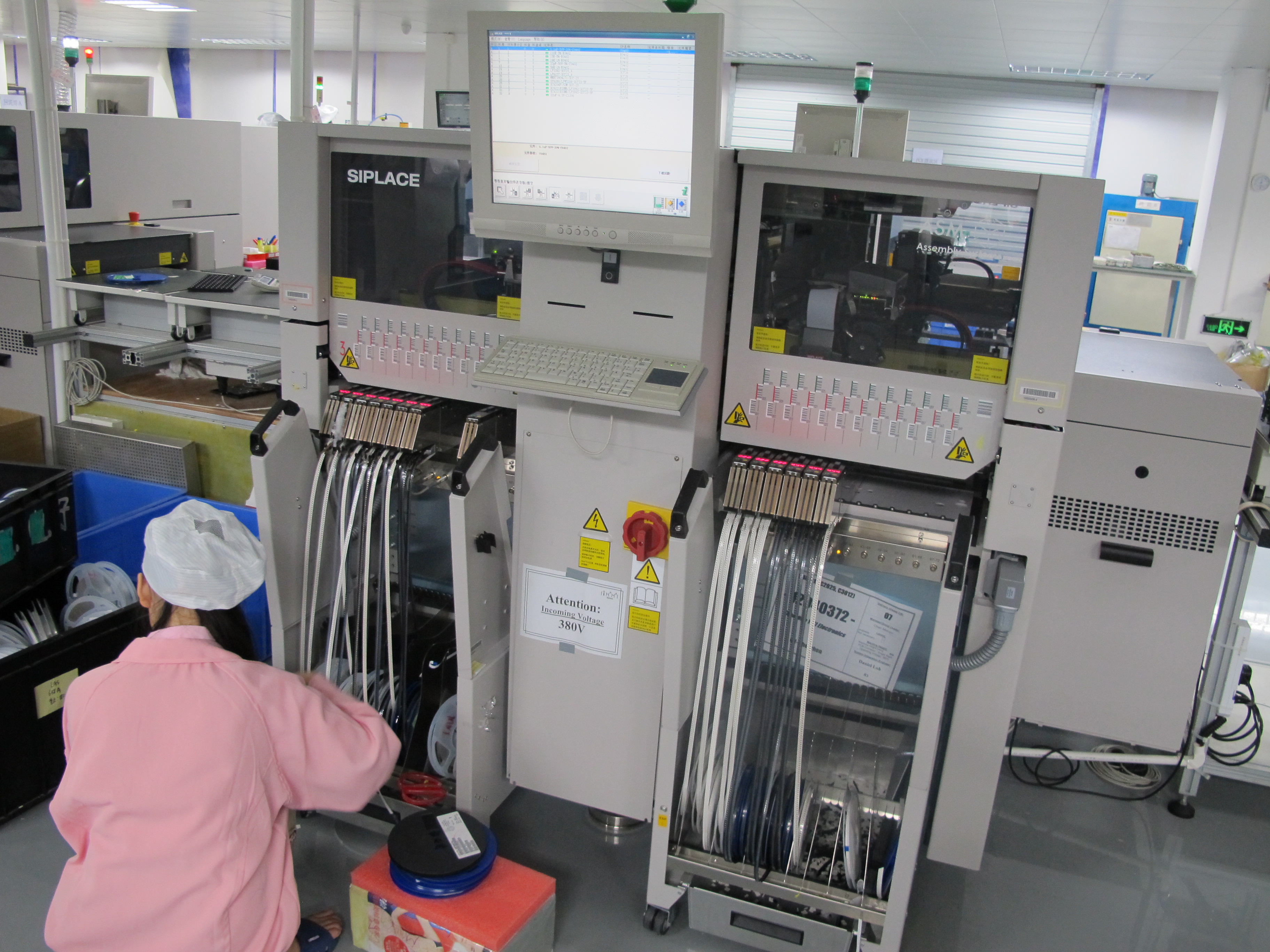

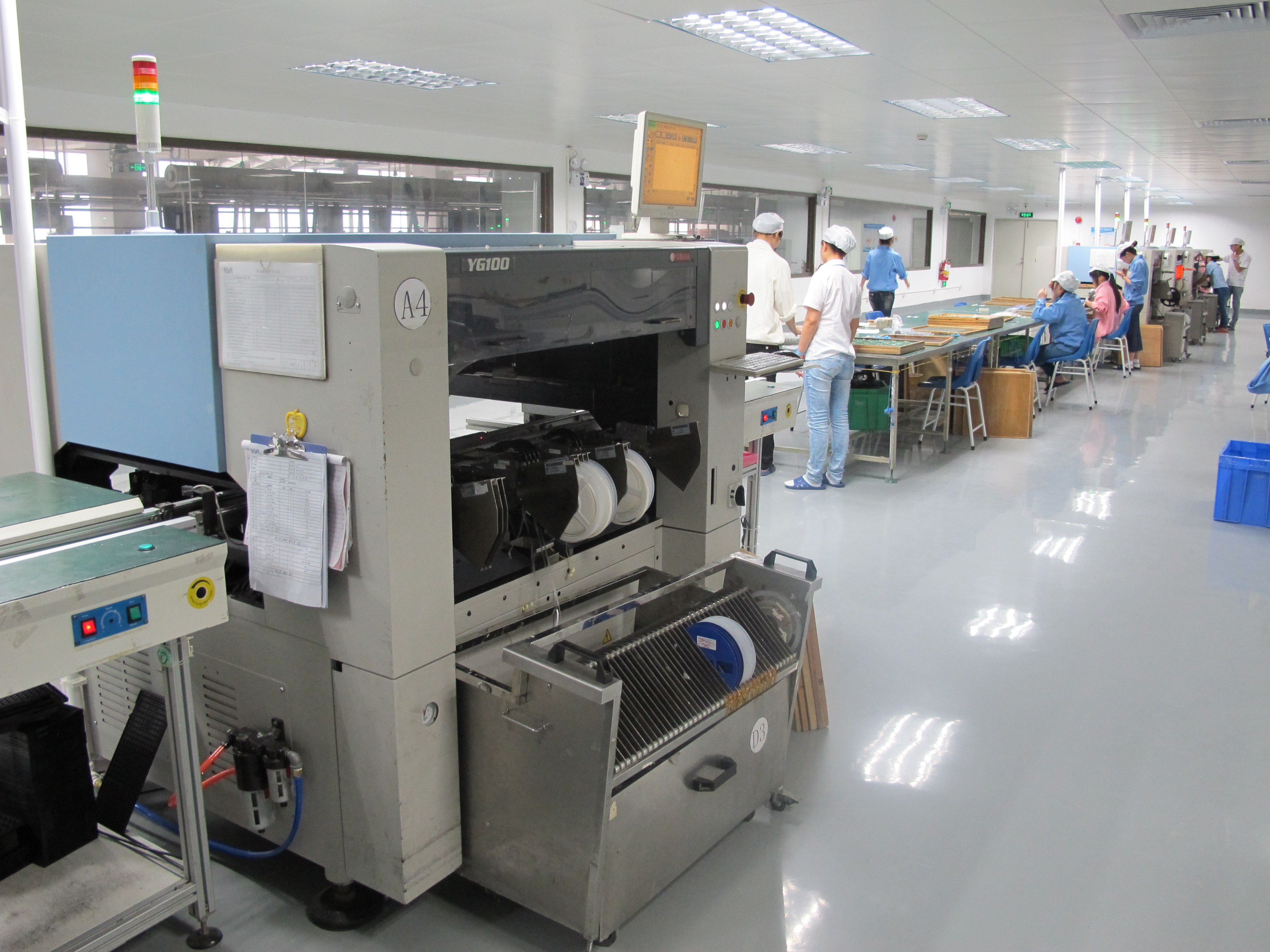

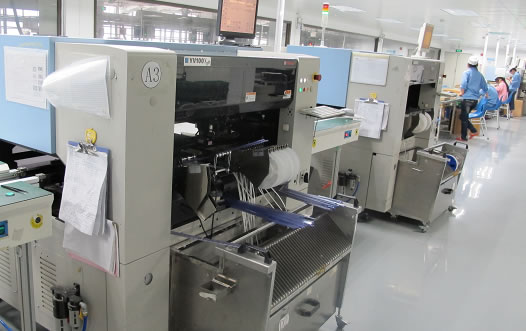

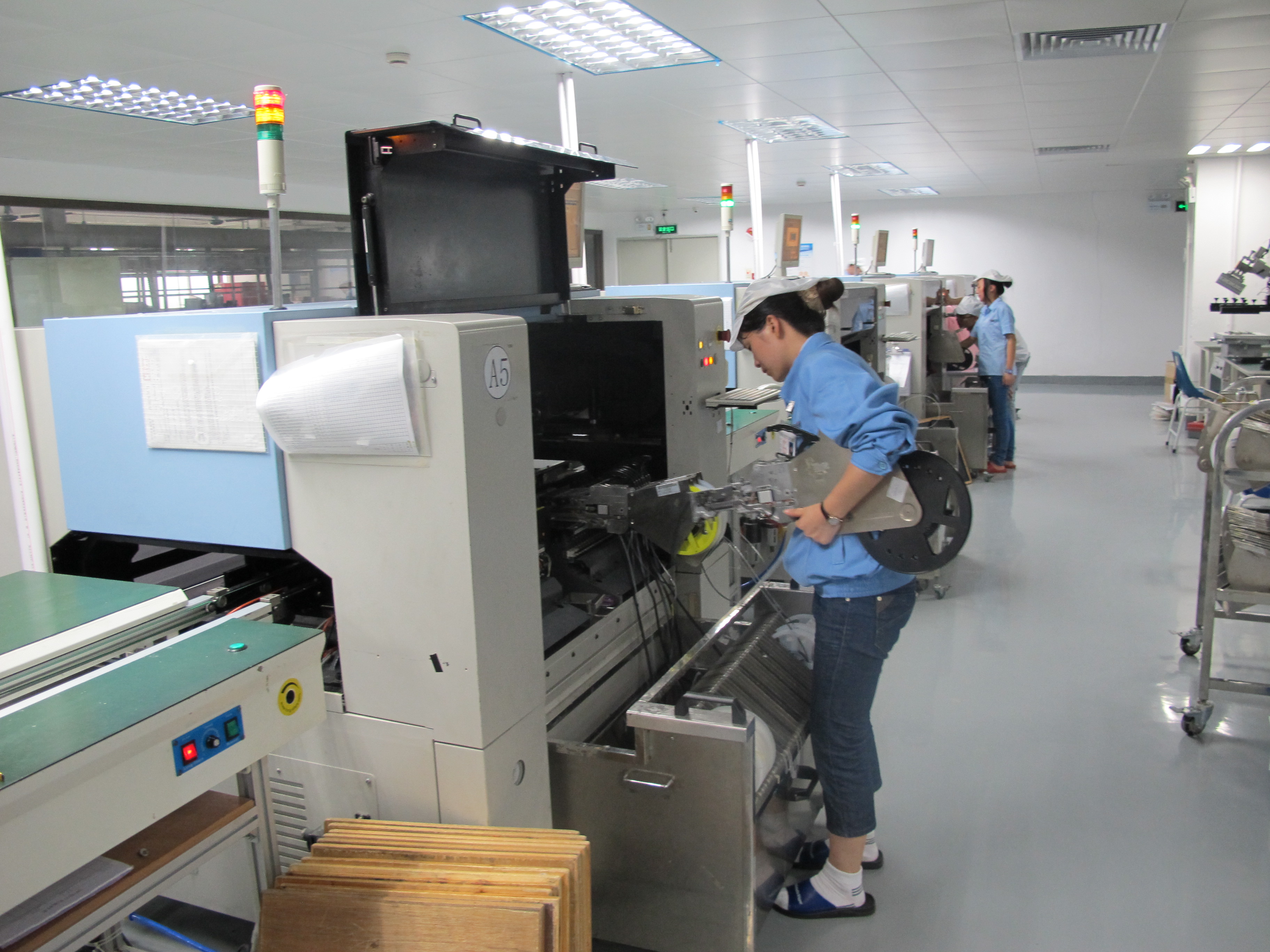

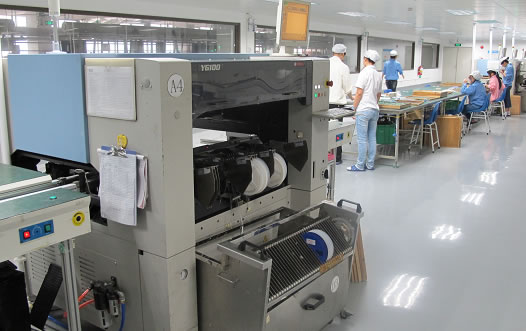

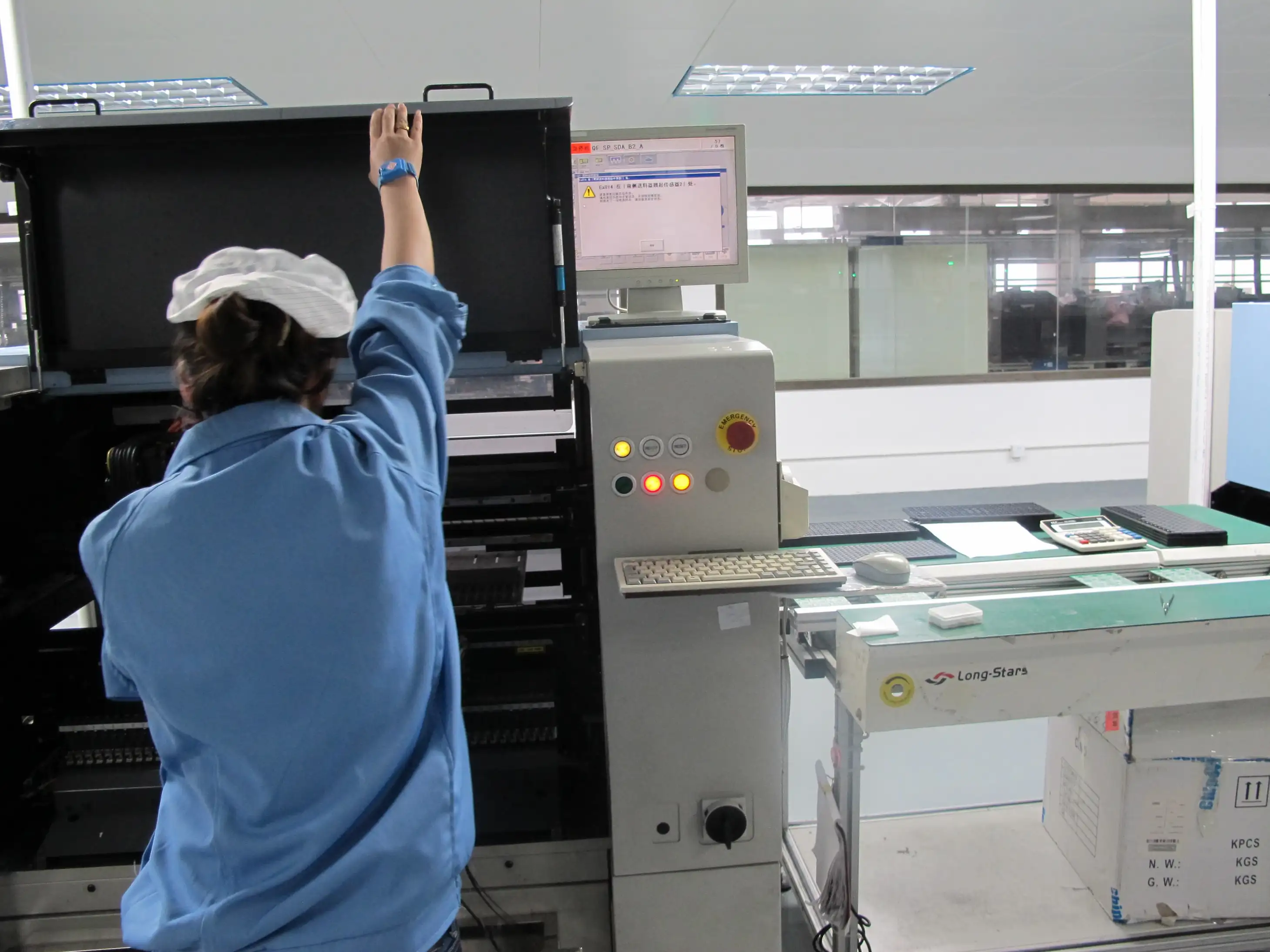

Pick and Place SMT Machine

Leaded parts to 0.012 in. (0.3 mm) pitch

Soldered heat slug containing parts (MO-220, QFN….).

SMT Assembly Process

Ceramic LCC

Parts as large as 3 in. x 3 in. x 0.6 in.

BGA SMT Assembly Process

Surface mount connectors

Odd form parts
Variable resistors and capacitors (pots)

SMT Assembly Process

Thru Hole

All sizes and lead configurations on both sides of the PCB assembly.

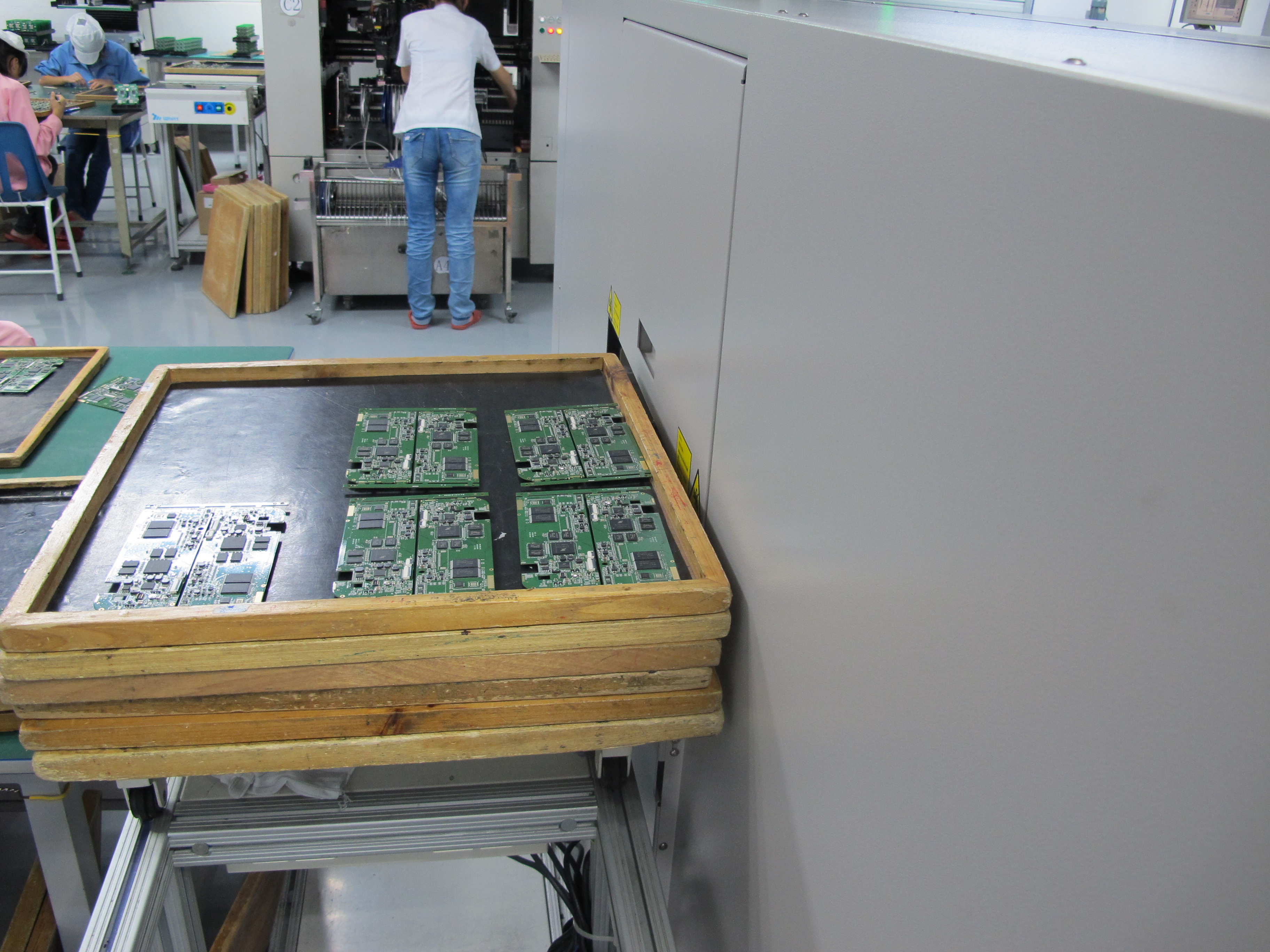

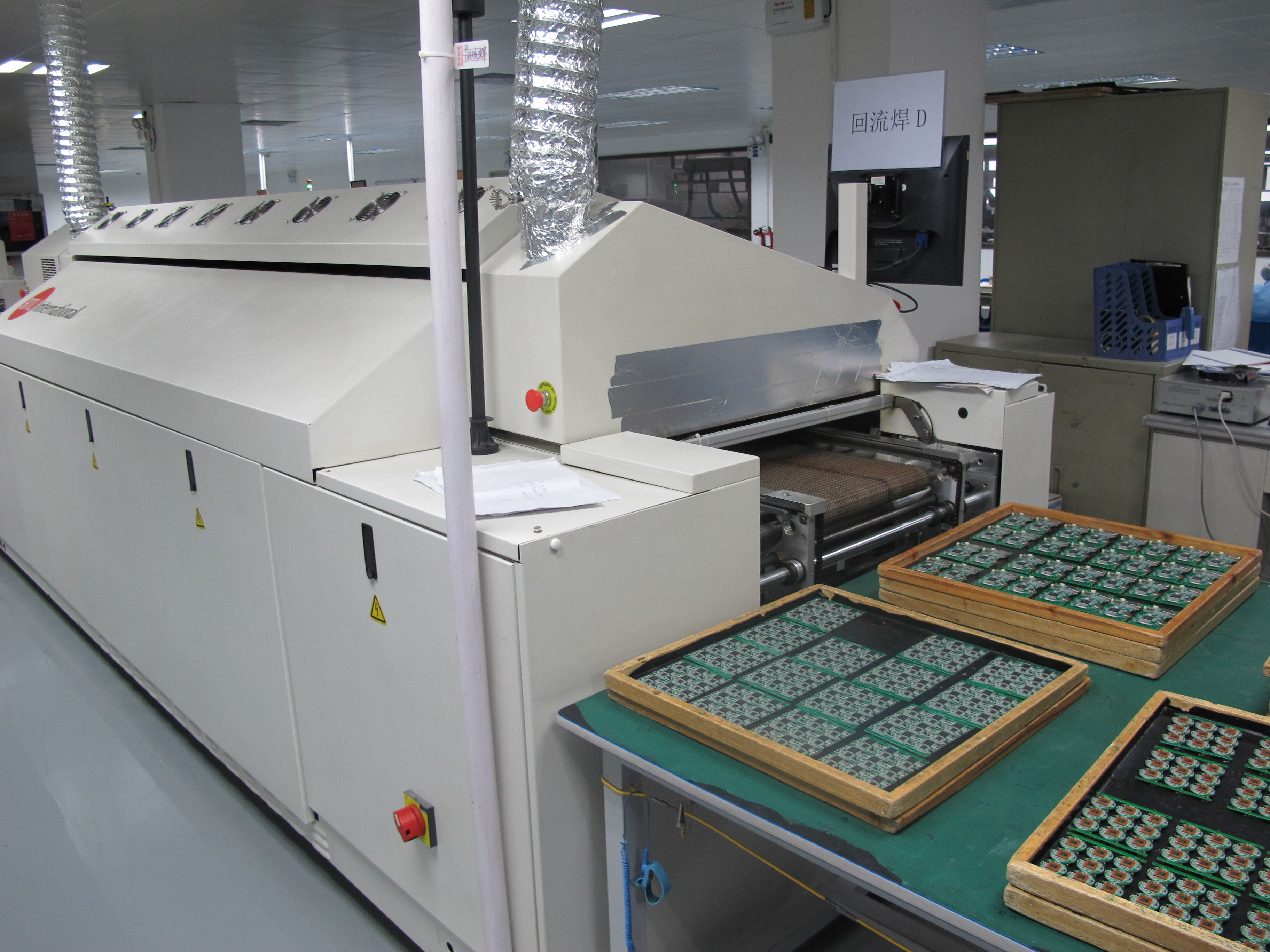

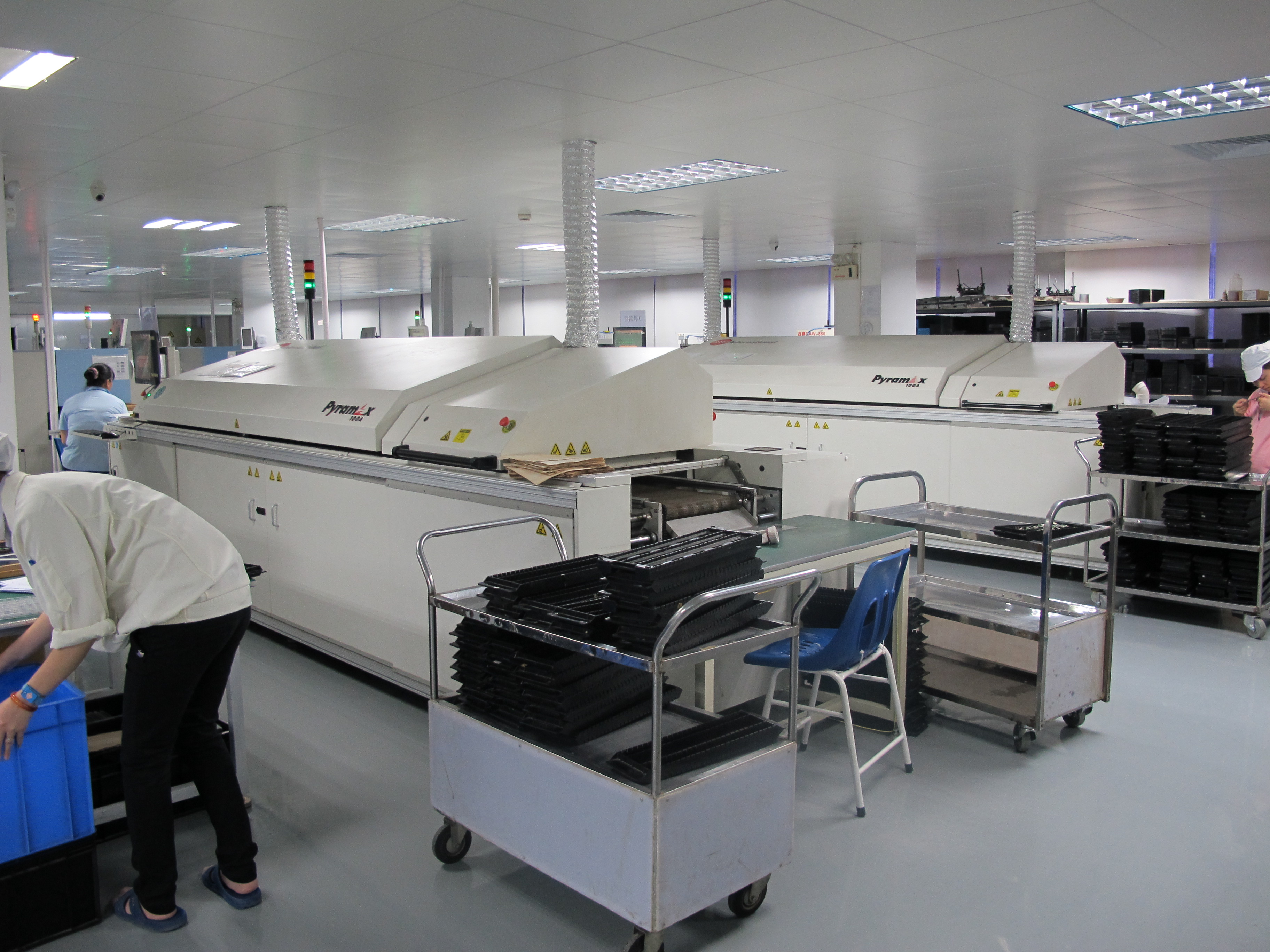

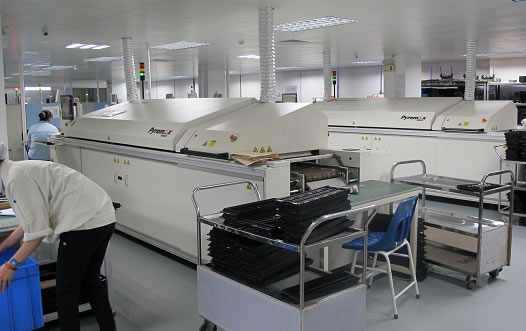

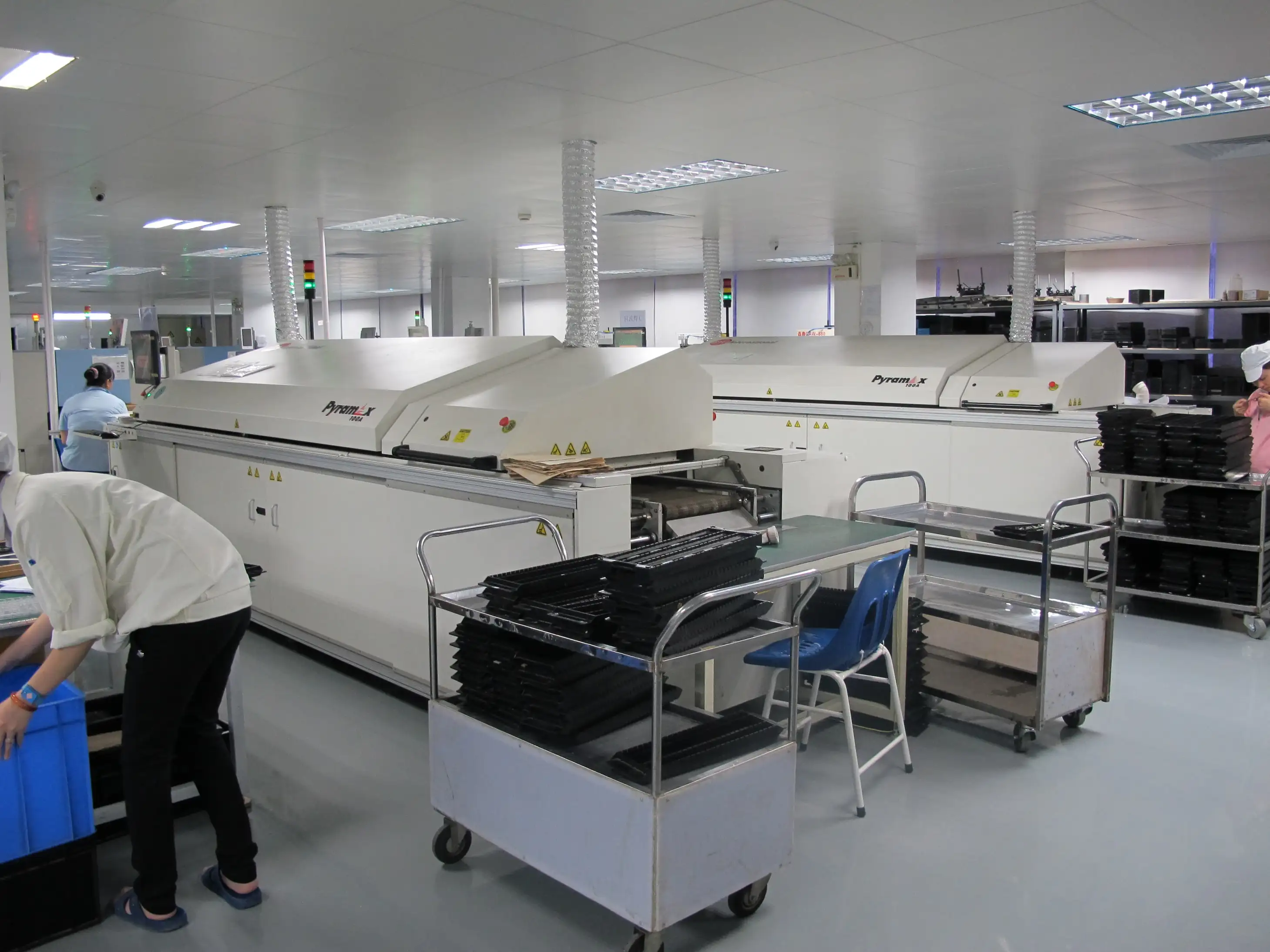

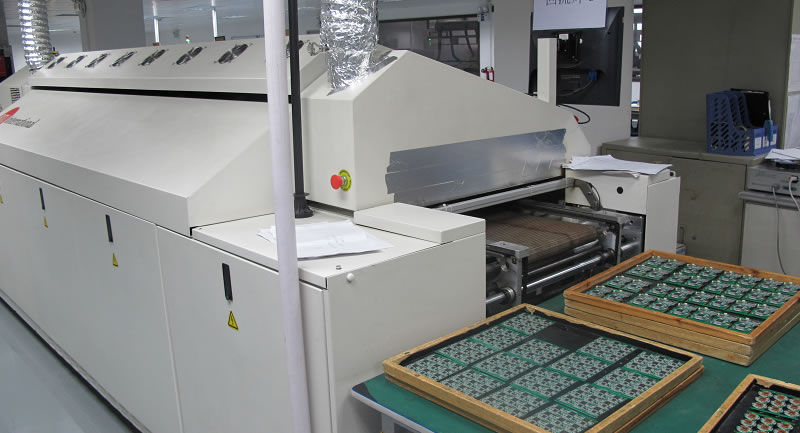

Hot Air Reflow soldering Process

Solder Chemistry

No-clean and Automated water wash flux cleaning is available

For furhter information, please feel free to contact us, www.pcbsino.com

PCBSINO PCB assembly electronic manufacturing

Play Video

Why PCBSINO Stands Out

PCBSINO is a full-service Electronics Manufacturing Service (EMS) provider. We are Professional on Quick-Turn Prototyping and Shortrun Production

We do SMT as well as Thru-hole assembly. We have the capability to handle virtually any device including all types of BGAs, CGAs, QFNs, DFNs, CSPs and SONs. Our assembly services are process oriented and high quality, giving the best possible repeatability.

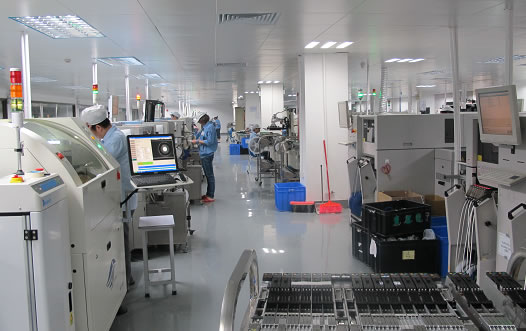

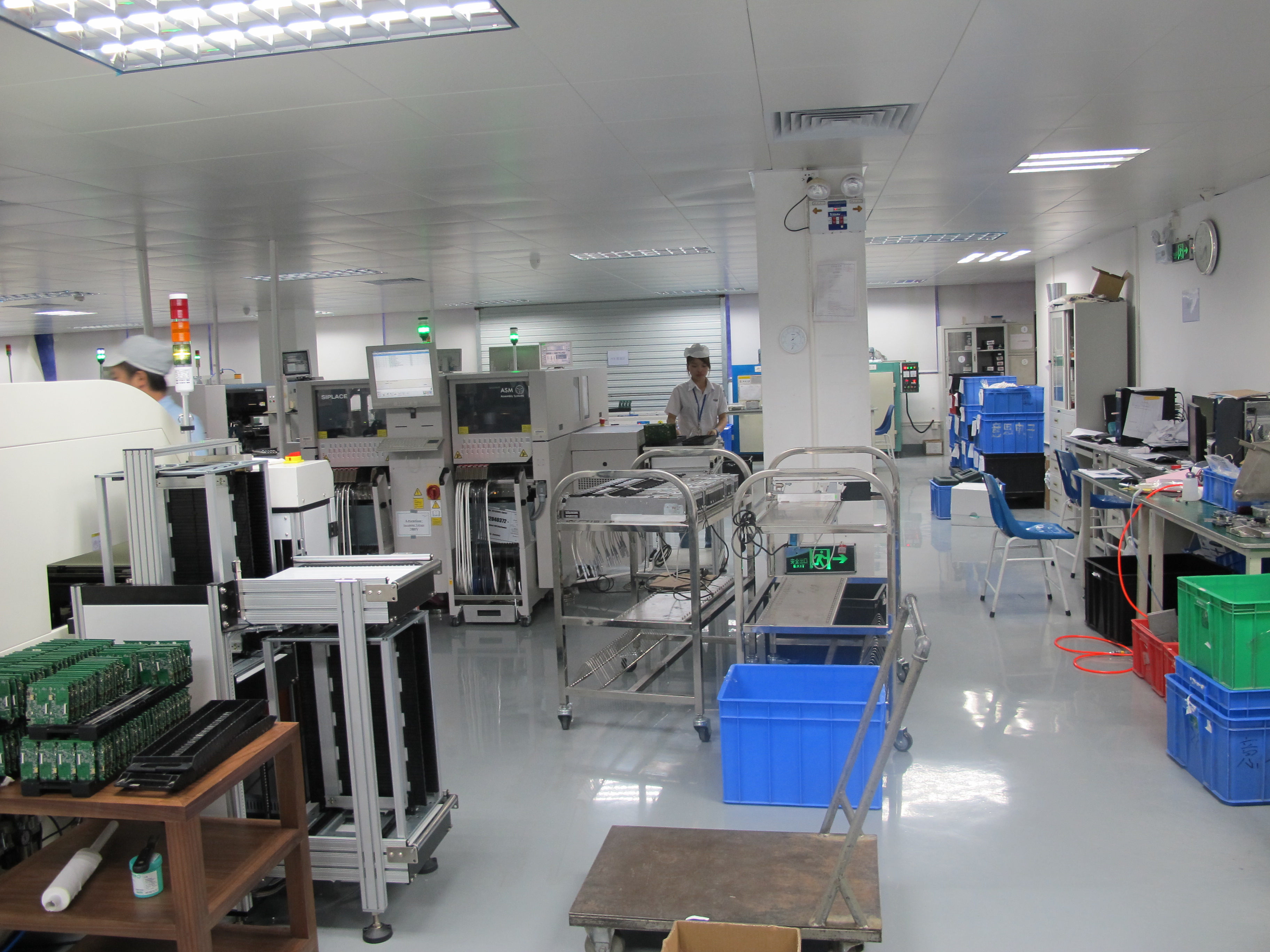

Best-in-class PCB Assembly Factory line
